Attributes for item G075-TJ3-MMXT-GFN
Model (in.):
0.75
Technical Construction:
BOLTED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
EPDM|FDA
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
TRI-CLAMP
Inlet Size (in.):
1.0
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
1.0
Discharge Orientation:
CENTER HORIZONTAL BACK
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
POLYETHYLENE|CONDUCTIVE
Valve Material:
EPDM (FDA)
Valve Type:
BALL
Valve Seat MATERIAL:
NONE
O Rings Gasket Material:
PTFE
Hardware Material:
SS
Muffler Material:
PLASTIC
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
1/4" FNPT
Maximum Allowable Operating Pressure (psig):
100.0
Max Air Pressure (psig):
100.0
Max Diameter Solids (in.):
0.35

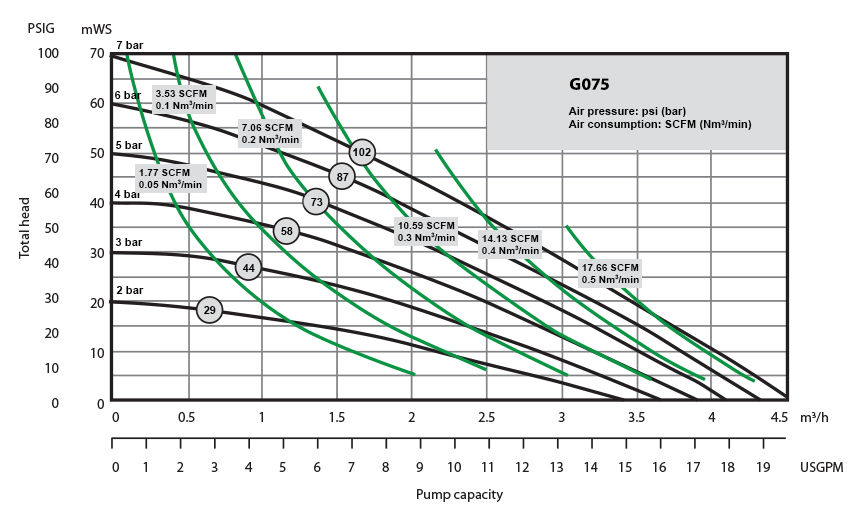

Max Flow Rate (gpm):
20.0
Flow Rate 40 Psi (gpm):
13.5
Flow Rate 50 Psi (gpm):
11.8
Flow Rate 60 Psi (gpm):
9.8
Flow Rate 70 Psi (gpm):
8.0
Flow Rate 80 Psi (gpm):
5.5
Flow Rate 90 Psi (gpm):
3.0
Flow Rate 100 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
6.6
Max Suction Lift Wet (ft.):
29.5
Max Operating Temperature (°F):
280.0
Min Operating Temperature (°F):
-40.0
Max Viscosity (cP):
25185
Max Air Consumption (psi):
17.66
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
YES
3A:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
15
Country Of Origin:
USA
