Attributes for item F150-TAE-4S3M-SF0
Model (in.):
1.5
Technical Construction:
BOLTED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
Santoprene®|FDA
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
TRI-CLAMP
Inlet Size (in.):
2.0
Inlet Orientation:
SIDE RIGHT
Discharge Size (in.):
2.0
Discharge Orientation:
SIDE RIGHT
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
ALUMINUM
Valve Material:
Santoprene®
Valve Type:
BALL
Valve Seat MATERIAL:
STAINLESS STEEL
O Rings Gasket Material:
EPDM (FDA)
Hardware Material:
SS
Muffler Material:
PLASTIC
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
3/4" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.25

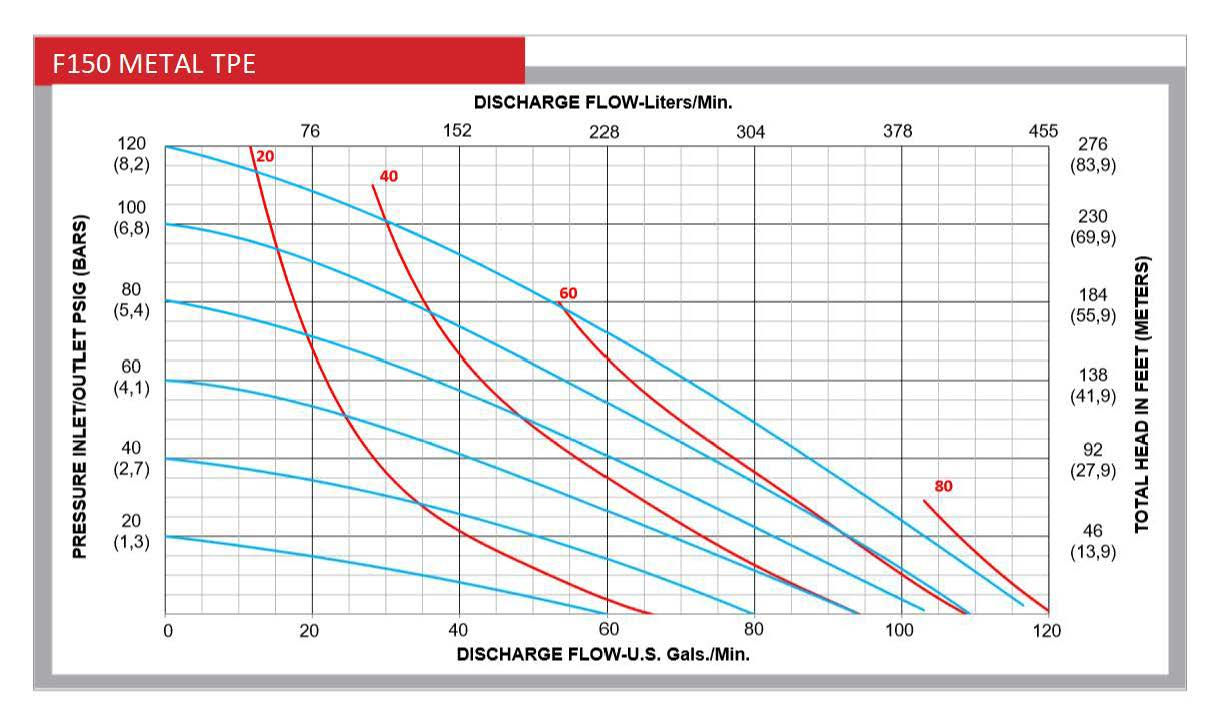

Max Flow Rate (gpm):
115.0
Flow Rate 60 Psi (gpm):
71.0
Flow Rate 70 Psi (gpm):
62.0
Flow Rate 80 Psi (gpm):
53.0
Flow Rate 100 Psi (gpm):
21.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
22.0
Max Suction Lift Wet (ft.):
31.0
Max Operating Temperature (°F):
225.0
Min Operating Temperature (°F):
-40.0
Max Viscosity (cP):
25185
Max Air Consumption (psi):
80.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
YES
3A:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
104
Shipping Dimensions:
22-3/8"X15-3/8"X28-1/4"
Country Of Origin:
USA
