Attributes for item F100-TAE-TT3T-S8A
Model (in.):
1
Technical Construction:
BOLTED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
TRI-CLAMP
Inlet Size (in.):
1.5
Inlet Orientation:
SIDE RIGHT
Discharge Size (in.):
1.5
Discharge Orientation:
SIDE RIGHT
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
ALUMINUM
Valve Material:
PTFE
Valve Type:
BALL
Valve Seat MATERIAL:
STAINLESS STEEL
O Rings Gasket Material:
PTFE
Hardware Material:
SS
Muffler Material:
METAL
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
1/2" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.25

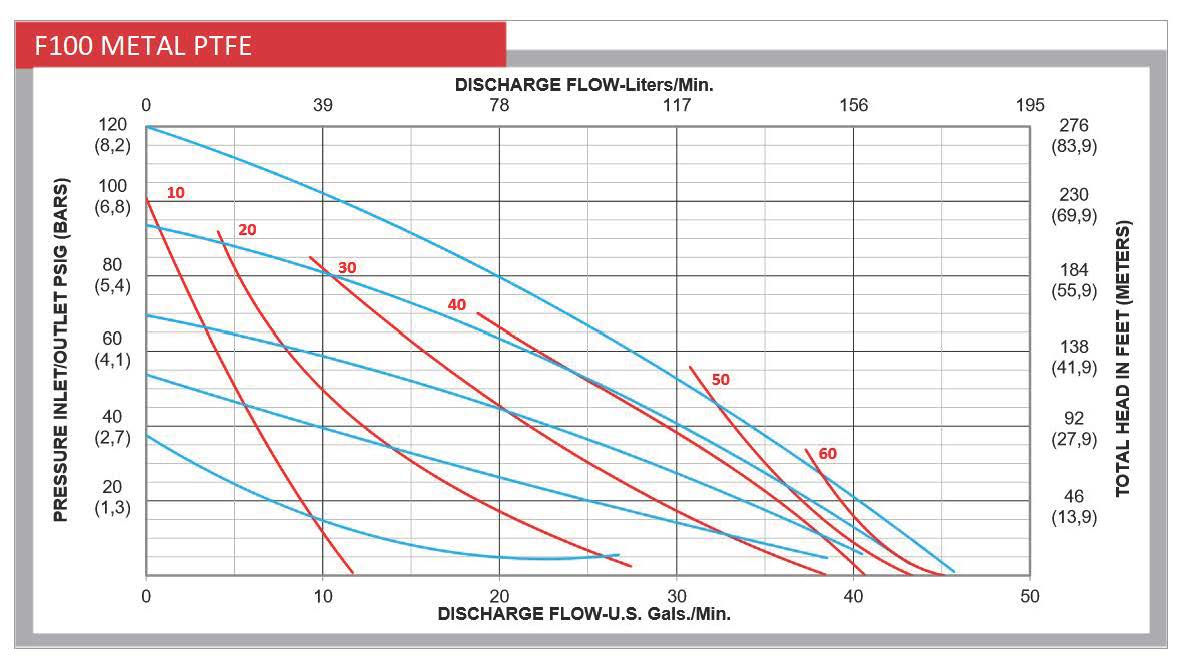

Max Flow Rate (gpm):
45.0
Flow Rate 40 Psi (gpm):
34.0
Flow Rate 50 Psi (gpm):
32.0
Flow Rate 60 Psi (gpm):
27.0
Flow Rate 70 Psi (gpm):
24.0
Flow Rate 80 Psi (gpm):
20.0
Flow Rate 90 Psi (gpm):
15.0
Flow Rate 100 Psi (gpm):
11.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
17.0
Max Suction Lift Wet (ft.):
30.0
Max Operating Temperature (°F):
220.0
Min Operating Temperature (°F):
40.0
Max Viscosity (cP):
25185
Max Air Consumption (psi):
60.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
YES
3A:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
50
Shipping Dimensions:
14-1/8"X12-1/8"X17"
Country Of Origin:
USA
