Attributes for item A300-NAA-TTAT-B40
Model (in.):
3
Technical Construction:
BOLTED
Wetted Path Material:
ALUMINUM
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
FNPT
Inlet Size (in.):
3.0
Inlet Orientation:
CENTER HORIZONTAL FRONT
Discharge Size (in.):
3.0
Discharge Orientation:
CENTER HORIZONTAL BACK
Outer Piston Materials:
ALUMINUM
Air Side Material:
ALUMINUM
Valve Material:
PTFE
Valve Type:
BALL
Valve Seat MATERIAL:
ALUMINUM
O Rings Gasket Material:
PTFE
Hardware Material:
ZINC PLATED
Muffler Material:
METAL
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
3/4" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.44

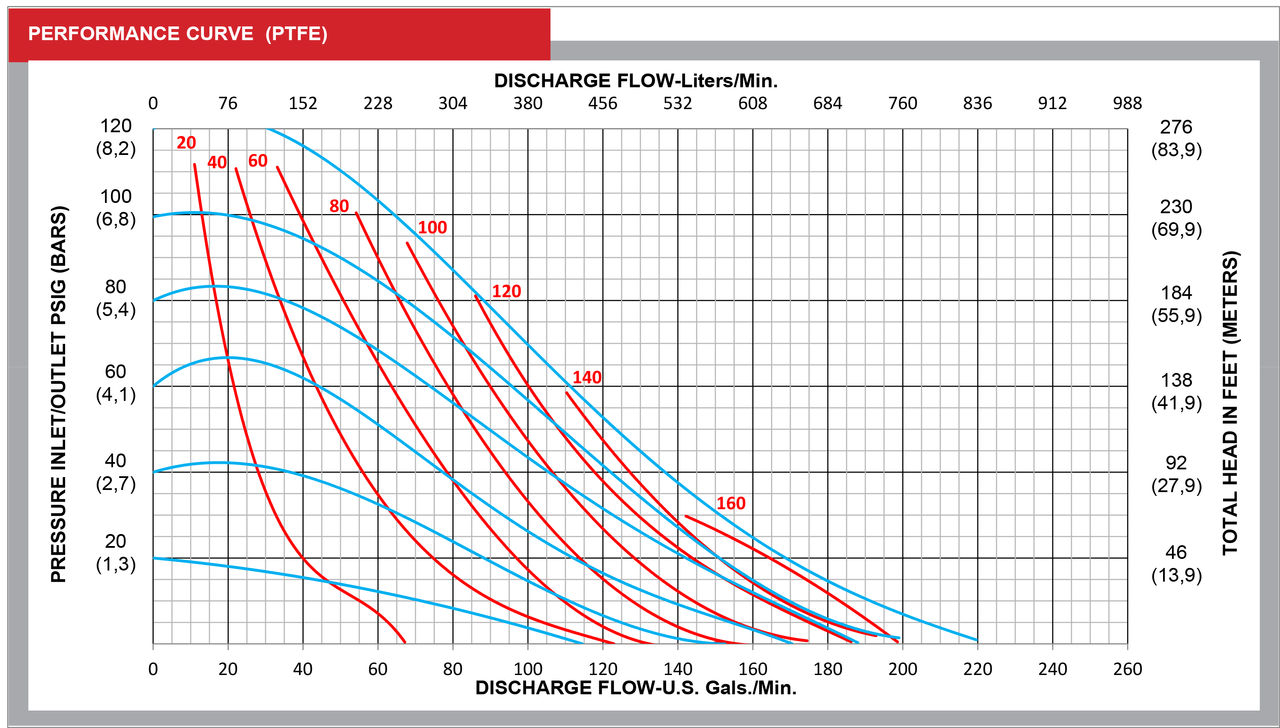

Max Flow Rate (gpm):
235.0
Flow Rate 40 Psi (gpm):
138.0
Flow Rate 50 Psi (gpm):
124.0
Flow Rate 60 Psi (gpm):
111.0
Flow Rate 70 Psi (gpm):
100.0
Flow Rate 80 Psi (gpm):
88.0
Flow Rate 90 Psi (gpm):
76.0
Flow Rate 100 Psi (gpm):
64.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
17.0
Max Suction Lift Wet (ft.):
31.0
Max Operating Temperature (°F):
220.0
Min Operating Temperature (°F):
40.0
Max Viscosity (cP):
25185
Max Air Consumption (psi):
170.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
159
Shipping Dimensions:
27-1/4"x19-3/8"x36-3/8"
Country Of Origin:
USA
