Attributes for item A200-FPP-SSPE-Y70
Model (in.):
2
Technical Construction:
BOLTED
Wetted Path Material:
POLYPROPYLENE
Diaphragm Material:
Santoprene®
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
ANSI/DIN FLANGE
Inlet Size (in.):
2.0
Inlet Orientation:
SIDE LEFT
Discharge Size (in.):
2.0
Discharge Orientation:
SIDE LEFT
Outer Piston Materials:
POLYPROPYLENE
Air Side Material:
POLYPROPYLENE
Valve Material:
Santoprene®
Valve Type:
BALL
Valve Seat MATERIAL:
POLYPROPYLENE
Hardware Material:
SS
Muffler Material:
PLASTIC
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
3/4" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.25

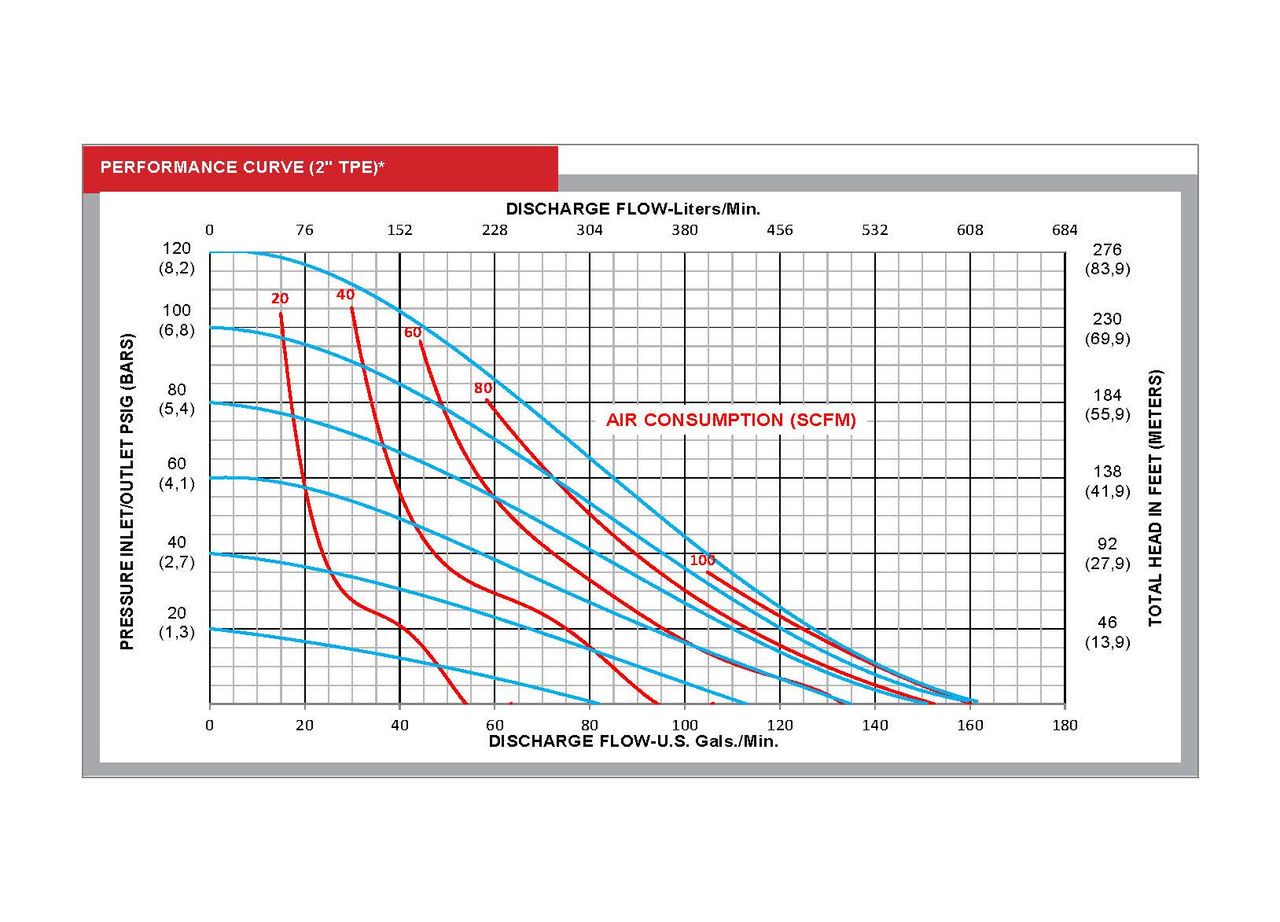

Max Flow Rate (gpm):
160.0
Flow Rate 40 Psi (gpm):
105.0
Flow Rate 50 Psi (gpm):
95.0
Flow Rate 60 Psi (gpm):
85.0
Flow Rate 70 Psi (gpm):
75.0
Flow Rate 80 Psi (gpm):
66.0
Flow Rate 90 Psi (gpm):
56.0
Flow Rate 100 Psi (gpm):
45.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
17.0
Max Suction Lift Wet (ft.):
29.0
Max Operating Temperature (°F):
180.0
Min Operating Temperature (°F):
32.0
Max Viscosity (cP):
25185
Max Air Consumption (psi):
100.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
80
Country Of Origin:
USA
