Attributes for item A200-EA3-T33T-BF0
Model (in.):
2
Technical Construction:
BOLTED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
PTFE
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
COMBINATION ANSI/DIN FLANGE & FBSPT
Inlet Size (in.):
2.0
Inlet Orientation:
CENTER HORIZONTAL FRONT
Discharge Size (in.):
2.0
Discharge Orientation:
CENTER HORIZONTAL BACK
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
ALUMINUM
Valve Material:
STAINLESS STEEL
Valve Type:
BALL
Valve Seat MATERIAL:
STAINLESS STEEL
O Rings Gasket Material:
PTFE
Hardware Material:
SS
Muffler Material:
PLASTIC
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
3/4" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.25

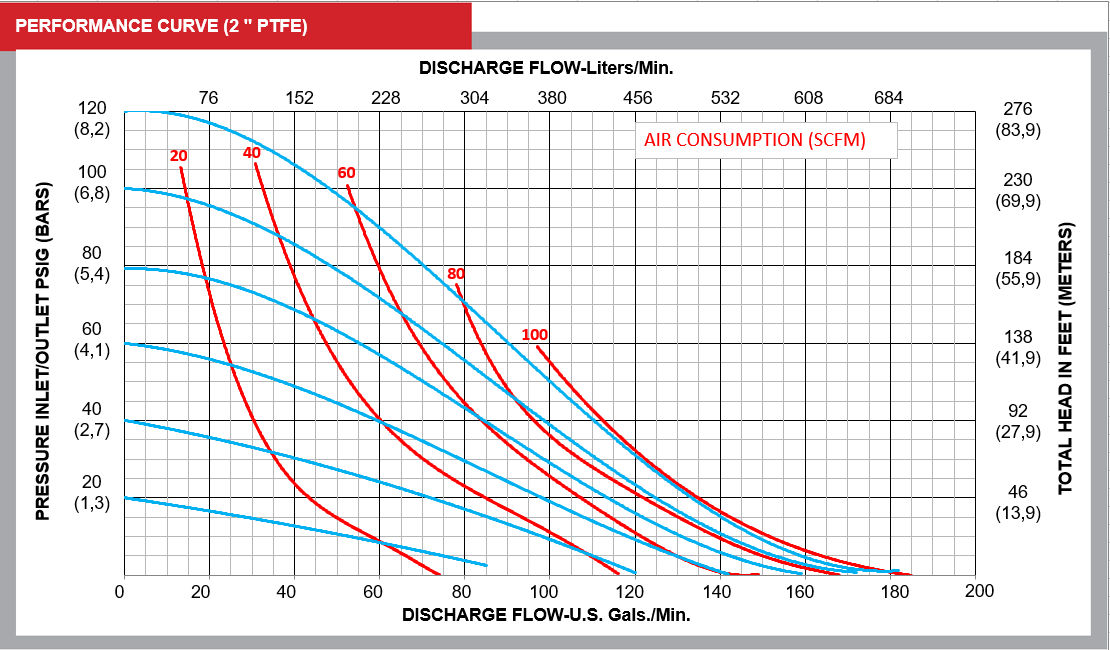

Max Flow Rate (gpm):
180.0
Flow Rate 40 Psi (gpm):
110.0
Flow Rate 50 Psi (gpm):
100.0
Flow Rate 60 Psi (gpm):
90.0
Flow Rate 70 Psi (gpm):
80.0
Flow Rate 80 Psi (gpm):
70.0
Flow Rate 90 Psi (gpm):
60.0
Flow Rate 100 Psi (gpm):
48.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
19.3
Max Suction Lift Wet (ft.):
31.7
Max Operating Temperature (°F):
220.0
Min Operating Temperature (°F):
40.0
Max Viscosity (cP):
25185
Max Air Consumption (psi):
100.0
Atex Rated:
YES
CE:
YES
UKCA:
YES
FDA:
YES
3A:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
153
Shipping Dimensions:
21-5/8"X15-5/8"X30-3/4"
Country Of Origin:
USA
