Attributes for item A100-CPK-SSKT-S70
Model (in.):
1
Technical Construction:
BOLTED
Wetted Path Material:
PVDF
Diaphragm Material:
Santoprene®
Diaphragm Design:
TRADITIONAL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
COMBINATION ANSI/DIN FLANGE & FNPT
Inlet Size (in.):
1.0
Inlet Orientation:
SIDE RIGHT
Discharge Size (in.):
1.0
Discharge Orientation:
SIDE RIGHT
Outer Piston Materials:
PVDF
Air Side Material:
POLYPROPYLENE
Valve Material:
Santoprene®
Valve Type:
BALL
Valve Seat MATERIAL:
PVDF
O Rings Gasket Material:
PTFE
Hardware Material:
SS
Muffler Material:
PLASTIC
Self Priming:
YES
Power Source:
COMPRESSED AIR
Air Inlet Connection:
1/4" FNPT
Maximum Allowable Operating Pressure (psig):
120.0
Max Air Pressure (psig):
120.0
Max Diameter Solids (in.):
0.25

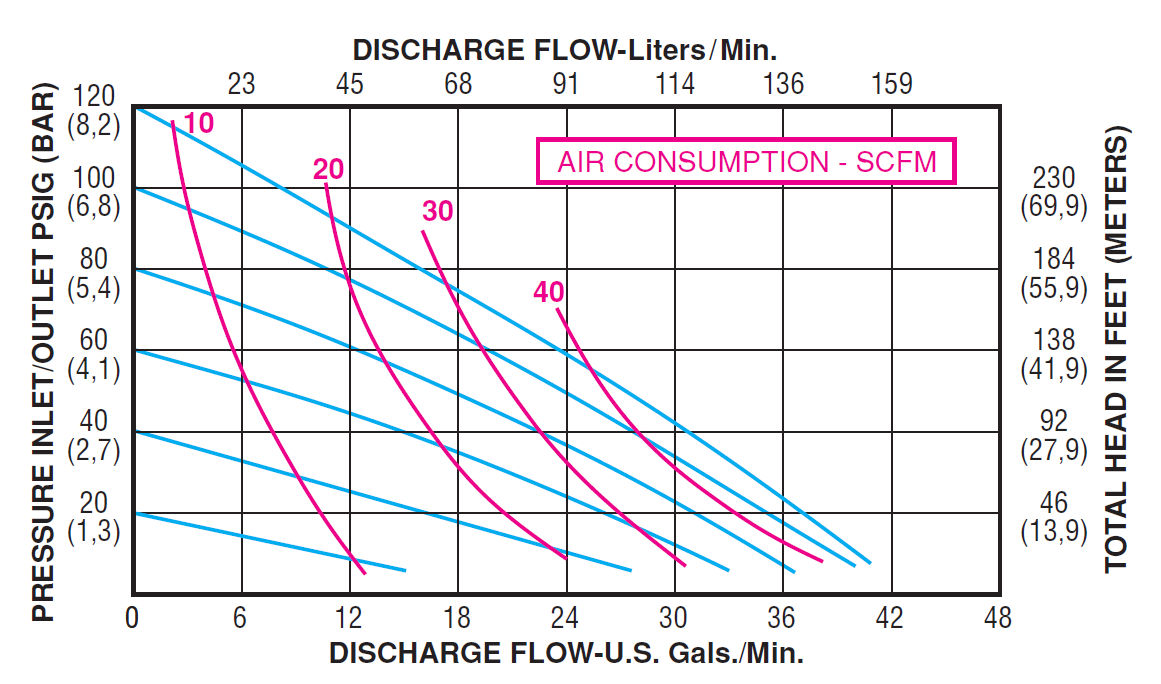

Max Flow Rate (gpm):
41.0
Flow Rate 60 Psi (gpm):
24.0
Flow Rate 70 Psi (gpm):
19.0
Flow Rate 80 Psi (gpm):
16.0
Flow Rate 100 Psi (gpm):
9.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
15.0
Max Suction Lift Wet (ft.):
26.0
Max Operating Temperature (°F):
225.0
Min Operating Temperature (°F):
0.0
Max Viscosity (cP):
25185
Max Air Consumption (psi):
45.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
36
Shipping Dimensions:
22"X12-1/8"X18"
Country Of Origin:
USA
