What Is Net Positive Suction Head (NPSH)?
Apr 13, 2026
Net Positive Suction Head (NPSH) is the “pressure margin” at a pump’s inlet above the liquid’s vapor pressure at operating temperature. When that margin gets too small, the liquid can flash into vapor bubbles at the inlet and trigger cavitation, vibration, noise, and rapid internal wear.
Contributors
This blog was developed using insights from PSG® subject-matter experts who routinely explain NPSH in real-world terms and troubleshoot vapor-related issues such as cavitation and prime loss. It also references PSG® manufacturer resources on NPSHa calculation, cavitation behavior and suction-piping friction.
A common misconception is that pumps “pull” liquid into themselves. In reality, liquid enters the pump because something pushes it there, usually atmospheric pressure (open tanks), tank pressure (closed tanks), or the weight of liquid above the pump (static head). If there isn’t enough pressure at the inlet to keep the liquid from flashing into vapor, the pump starts to starve.
That’s why NPSH is best understood as inlet pressure margin. You’re trying to keep the inlet region filled with liquid at a pressure high enough to prevent vapor formation at the pump’s suction.
The Two NPSH Numbers You’ll See: NPSHa vs. NPSHr
NPSH always comes in two parts:
• NPSHa (Net Positive Suction Head available): the inlet pressure margin your system actually provides.
• NPSHr (Net Positive Suction Head required): the minimum inlet margin the pump needs to avoid a defined level of cavitation at a given flow.
If NPSHa is less than NPSHr at the operating point, cavitation is likely. Even if NPSHa is only slightly above NPSHr, you may still get intermittent cavitation as temperature rises, tank level drops, or suction losses increase.
Why NPSH Matters: Cavitation Is a Wear Mechanism, Not Just an Annoying Noise
Cavitation occurs when an NPSH deficit causes vapor bubbles to form and then collapse inside the pump. Blackmer explains this mechanism clearly here: Pump Cavitation Causes and Prevention.
Cavitation damage often shows up as pitted metal surfaces, premature seal and bearing failures, reduced capacity, unstable flow, and rising vibration. If you treat cavitation as “normal,” it usually becomes repeated downtime.
A Simple NPSHa Framework (What Increases It vs. What Reduces It)
You don’t need to memorize a formula to troubleshoot NPSH. You need to know which levers move NPSHa up or down.
NPSHa increases when you:
• Increase static head (raise liquid level or lower the pump).
• Increase inlet pressure (pressurize the tank, when appropriate).
• Use larger/shorter suction piping and reduce fittings to cut friction losses.
• Reduce suction velocity (bigger pipe, lower flow) and reduce strainer restriction.
• Lower fluid temperature (lower vapor pressure).
NPSHa decreases when you:
• Run at minimum tank level (lowest static head).
• Increase flow rate (higher friction losses; and many pumps’ NPSHr rises at higher flow).
• Add suction restrictions (undersized pipe, long runs, too many elbows, clogged strainers).
• Increase fluid temperature (higher vapor pressure; easier flashing).
• Operate at high elevation (lower atmospheric pressure in open systems).
Cavitation doesn't just hurt performance, it accelerates wear on liners, vanes, seals and bearings that keep your pump running reliably. When NPSH-related stress shortens the life of internal components, replacing them with genuine parts restores the clearances and material specs your pump was designed around.
How to Calculate NPSHa (and How to Measure It in the Field)
For a clear walk-through on determining system NPSHa for an installed pump, Griswold® provides a step-by-step article here: Determining System NPSHa.
For cavitation prevention using NPSHa calculations and monitoring, see: How to Prevent Pump Cavitation Using NPSHa Calculations.

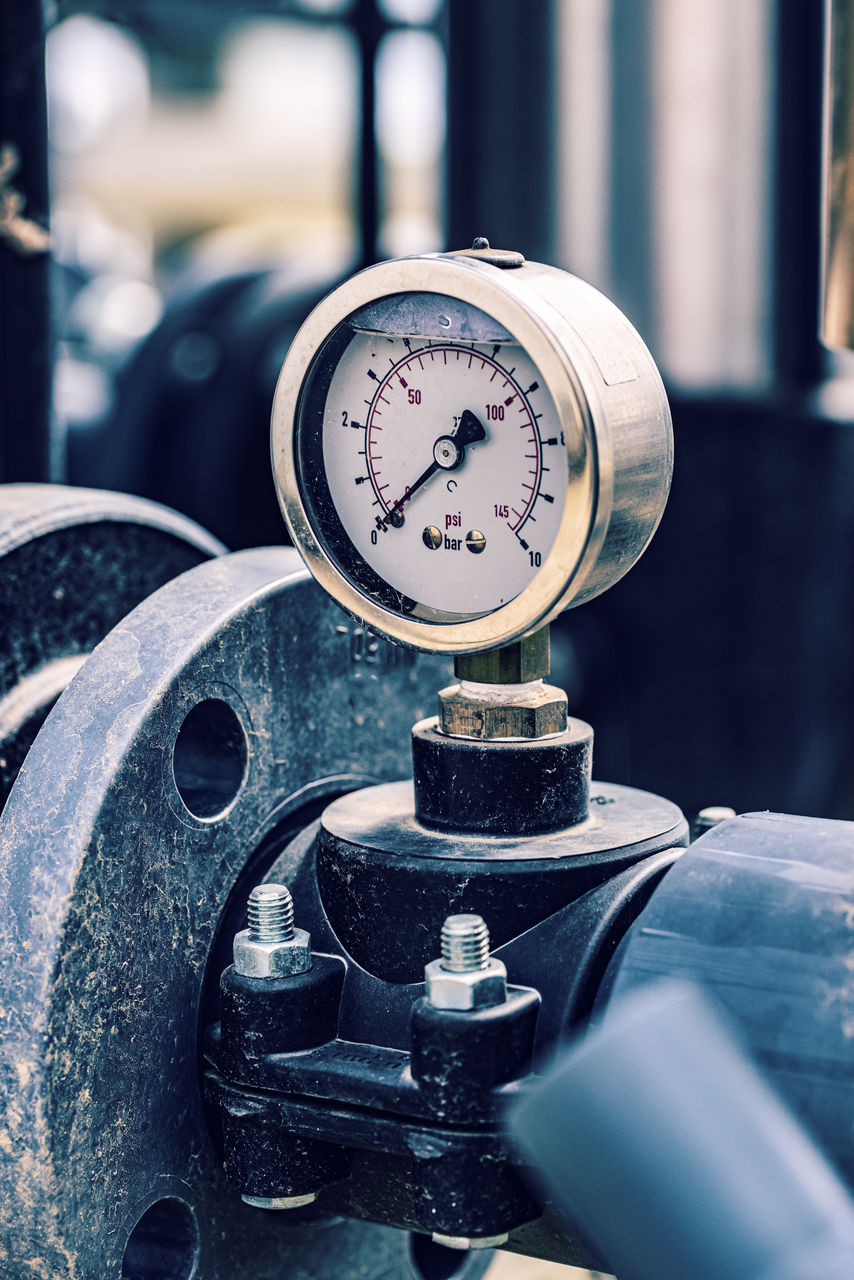

In practice, NPSHa troubleshooting often becomes a measurement problem: you need suction pressure (or vacuum), fluid temperature, and a reliable estimate of suction friction losses. If you can log suction pressure and tank level during events, you can usually identify the moment NPSHa collapses.
Why NPSH Calculations ‘Pass’ on Paper and Fail in Real Operation
Many NPSH problems happen because calculations are done using average conditions. In daily operation, NPSHa is dynamic and usually worst during the same conditions people ignore:
• Minimum liquid level (lowest static head).
• Maximum temperature (highest vapor pressure).
• Maximum suction losses (fouled strainers, extra fittings, longer temporary hoses).
• Upset flow conditions (operators open valves, speed increases, or demand spikes).
For a field-oriented explanation of how vapor formation and suction instability lead to performance collapse, see How Do Pumps Lose Prime?.
Pipe Friction: The Hidden NPSH Killer
Suction-side friction is often the dominant NPSHa loss. Undersized piping and long, restrictive suction runs can starve a pump even when the tank is full. Wilden’s® guide explains the relationship between cavitation and suction friction in practical terms: Cavitation and Pipe Friction Guide (PDF source). (More Wilden® guides are listed here: Wilden® AODD pump guides.)
A reliable rule of thumb is to treat suction piping like a precision component: keep it short, large, simple, and airtight. Every restriction you add on suction reduces inlet pressure margin.
How to Fix Low NPSH Without Rebuilding the Pump (Downtime Prevention)
If you’re seeing cavitation, unstable flow, or repeated seal failures, fix the inlet conditions first. These changes are often the biggest downtime-reducers:
• Increase suction line size and remove unnecessary suction fittings.
• Clean/upgrade strainers and avoid restrictive suction-side filters.
• Move the pump closer to the supply source (shorter suction run).
• Lower the pump elevation or raise the liquid level (more static head).
• Reduce flow/speed (reduces suction losses and often reduces NPSHr).
• Treat temperature as a design variable (hotter fluid means lower margin).
Does NPSH Matter for AODD Pumps?
Yes, NPSH is a system concept, not just a centrifugal concept. But AODD pumps behave differently during vapor and air ingestion. If you want a refresher on diaphragm pumps and why they’re commonly used when suction conditions are unstable, see the AODD technology overview.
AODD pumps can often tolerate intermittent air ingestion and resume pumping when liquid returns, which is one reason they’re used in many suction-unstable services. However, severe vapor formation and suction starvation still reduce capacity and can create heat and wear issues. The best practice remains the same: design suction conditions for worst-case operation.
Next Steps: Get Help Verifying NPSH and Fixing the Root Cause
If NPSH is driving downtime in your system, start by documenting the worst-case conditions (minimum tank level, maximum temperature, maximum flow) and reviewing your suction piping.
If you want help selecting a pump or validating suction conditions, contact the PSG® Store team. To narrow pump options quickly, use the Pump Finder. You can also browse by brand: Shop Wilden® and Shop All-Flo™.
For additional information, please review our returns policy, shipping policy and terms and conditions, including our terms of use.
Contributors
Doug Cumpston
Doug Cumpston supports pump selection across downstream and industrial transfer environments where suction conditions, vapor pressure and temperature determine reliability. He frequently explains NPSH in practical terms and emphasizes friction losses, suction pipe sizing and real-world worst-case conditions.
Steve Cox
Steve Cox has decades of pump-industry experience across multiple pump technologies. His background includes field troubleshooting where the root cause is usually suction piping, temperature, or system configuration, not a defective pump.
