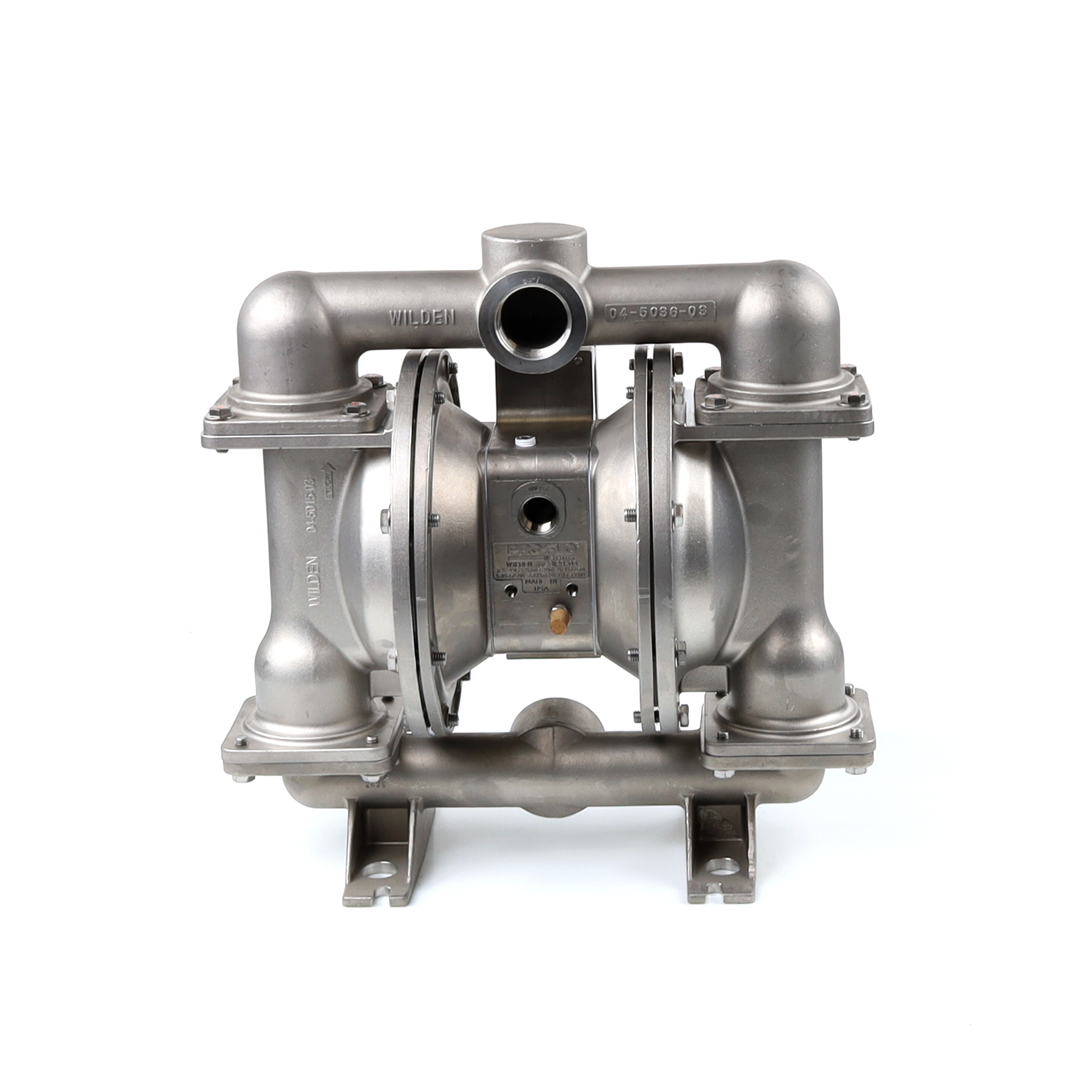

Attributes for item 04-13498
Model (in.):
1.5
Technical Construction:
BOLTED
Wetted Path Material:
STAINLESS STEEL
Diaphragm Material:
Santoprene®
Diaphragm Design:
EZ-INSTALL
Diaphragm Stroke:
Full-Stroke
Connection Standard:
BSPT
Inlet Size (in.):
1.5
Inlet Orientation:
CENTER HORIZONTAL BACK
Discharge Size (in.):
1.5
Discharge Orientation:
CENTER HORIZONTAL FRONT
Outer Piston Materials:
STAINLESS STEEL
Air Side Material:
ALUMINUM
Valve Material:
Santoprene®
Valve Type:
VALVE BALL
Valve Seat MATERIAL:
SANTOPRENE
O Rings Gasket Material:
SANTOPRENE
Hardware Material:
STAINLESS STEEL
Muffler Material:
None
Self Priming:
YES
Power Source:
NATURAL GAS/COMPRESSED AIR
Air Inlet Connection:
FNPT
Maximum Allowable Operating Pressure (psig):
125.0
Max Air Pressure (psig):
125.0
Max Diameter Solids (in.):
0.25
Max Flow Rate (gpm):
135.0
Flow Rate 40 Psi (gpm):
100.0
Flow Rate 50 Psi (gpm):
90.0
Flow Rate 60 Psi (gpm):
80.0
Flow Rate 70 Psi (gpm):
71.0
Flow Rate 80 Psi (gpm):
61.0
Flow Rate 90 Psi (gpm):
50.0
Flow Rate 100 Psi (gpm):
38.0
Flow Rate 120 Psi (gpm):
0.0
Max Suction Lift Dry (ft.):
18.4
Max Operating Temperature (°F):
225.0
Min Operating Temperature (°F):
-40.0
Max Viscosity (cP):
125000
Max Air Consumption (psi):
85.0
Atex Rated:
NO
CE:
YES
UKCA:
YES
FDA:
NO
3A:
NO
EHEDGE:
NO
UL:
NO
CSA:
NO
Shipping Weight (lbs):
114
Shipping Dimensions:
17.88" W X 13.75" L X 22.19" H
Country Of Origin:
UNITIED STATES
